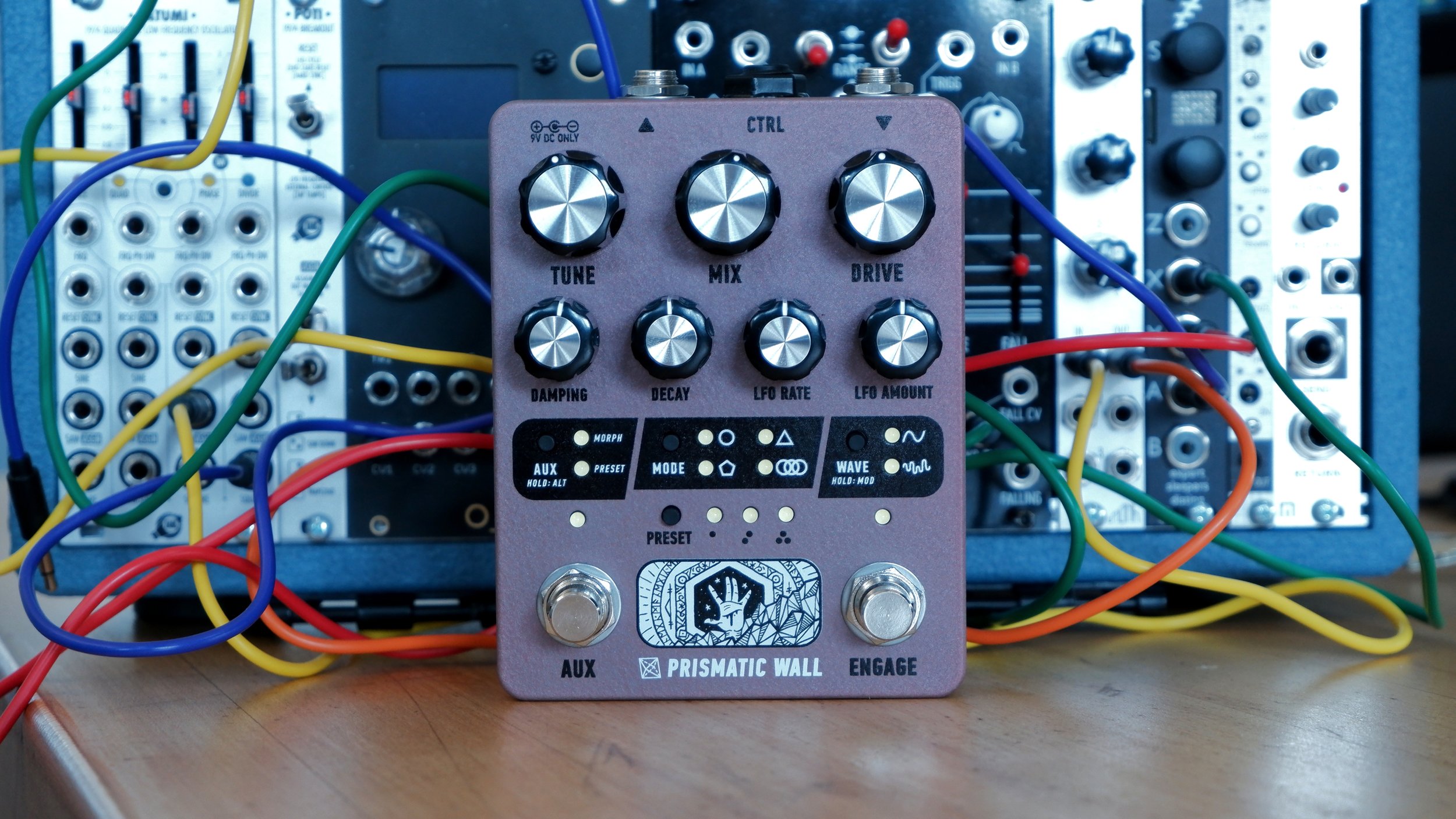

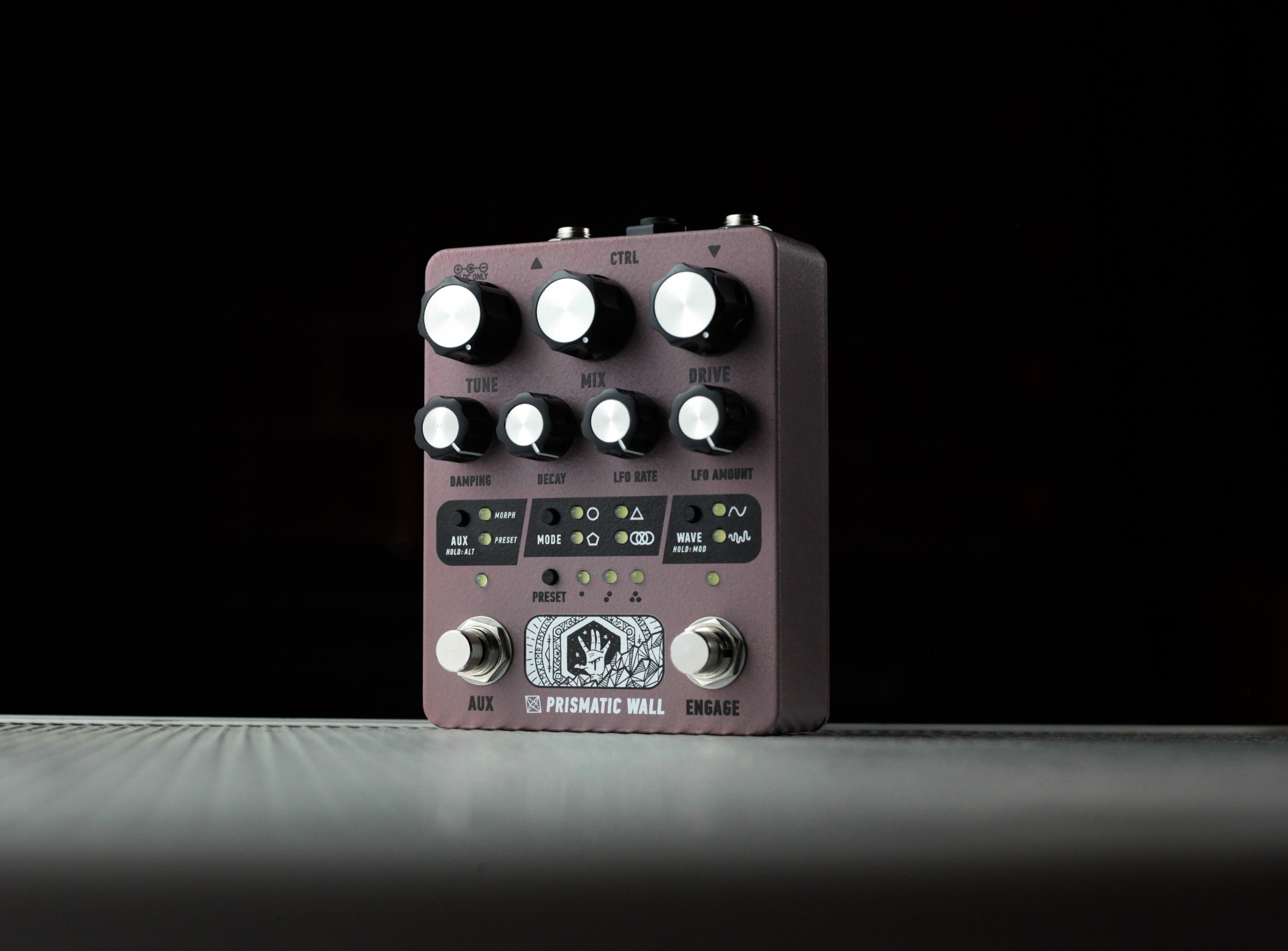

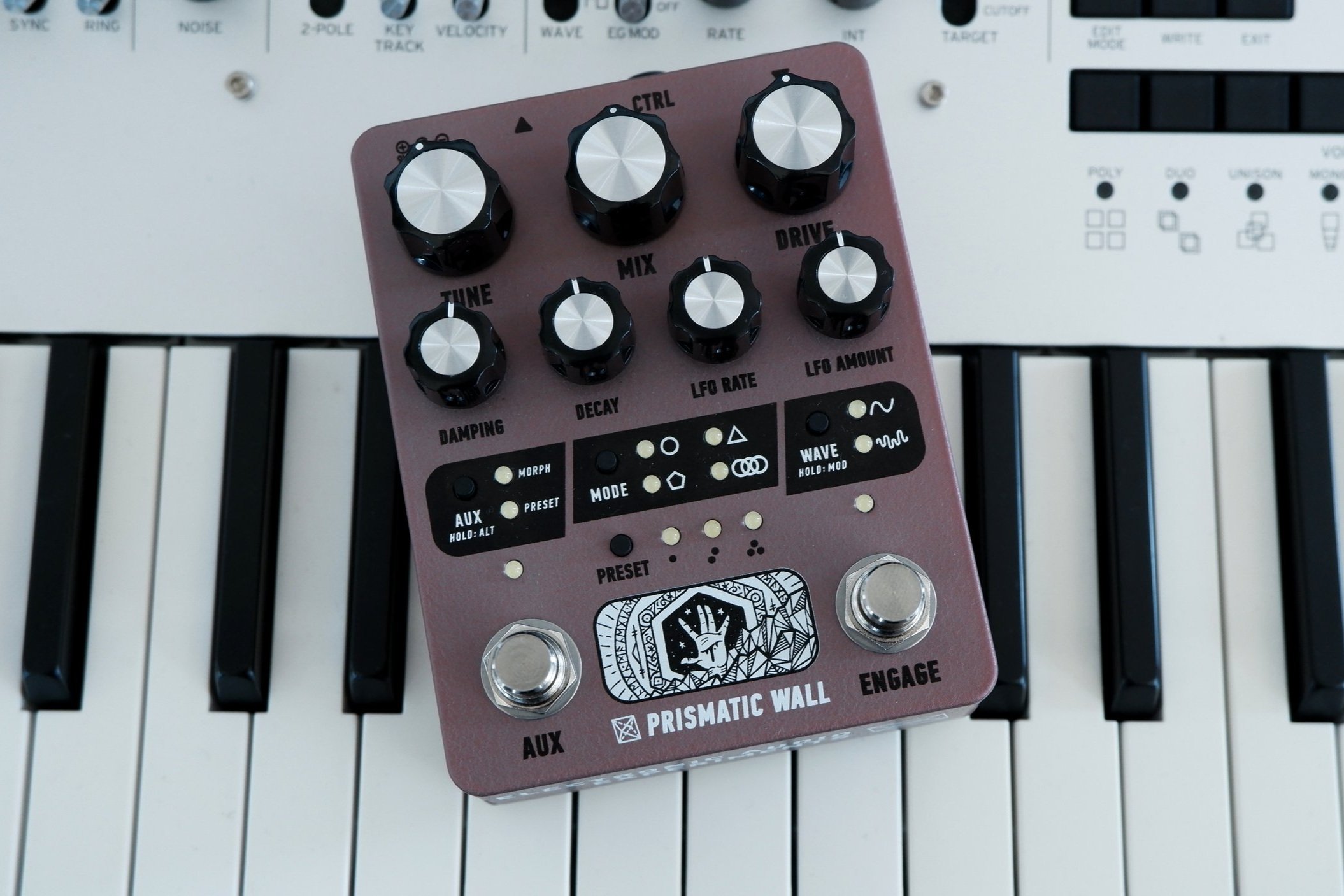

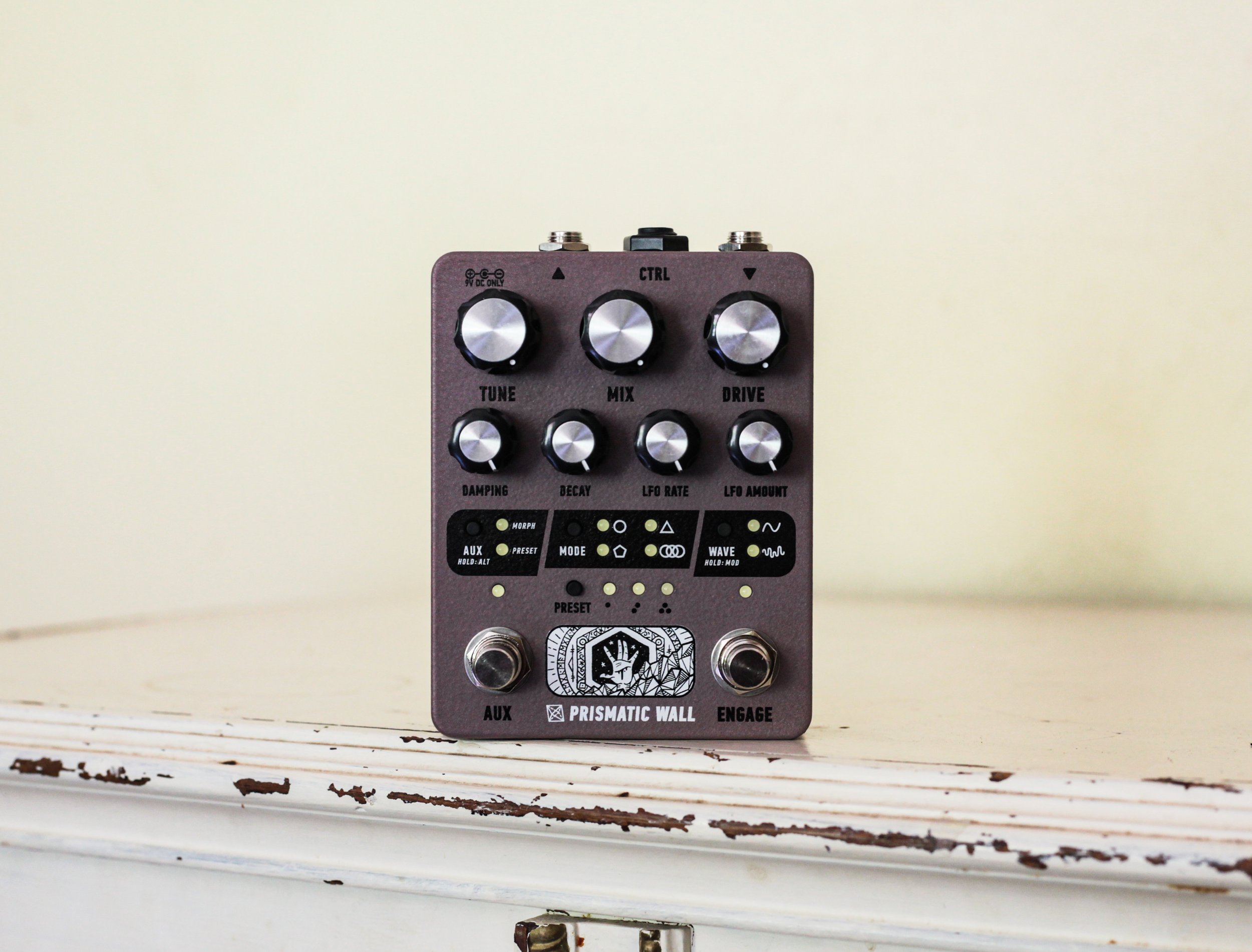

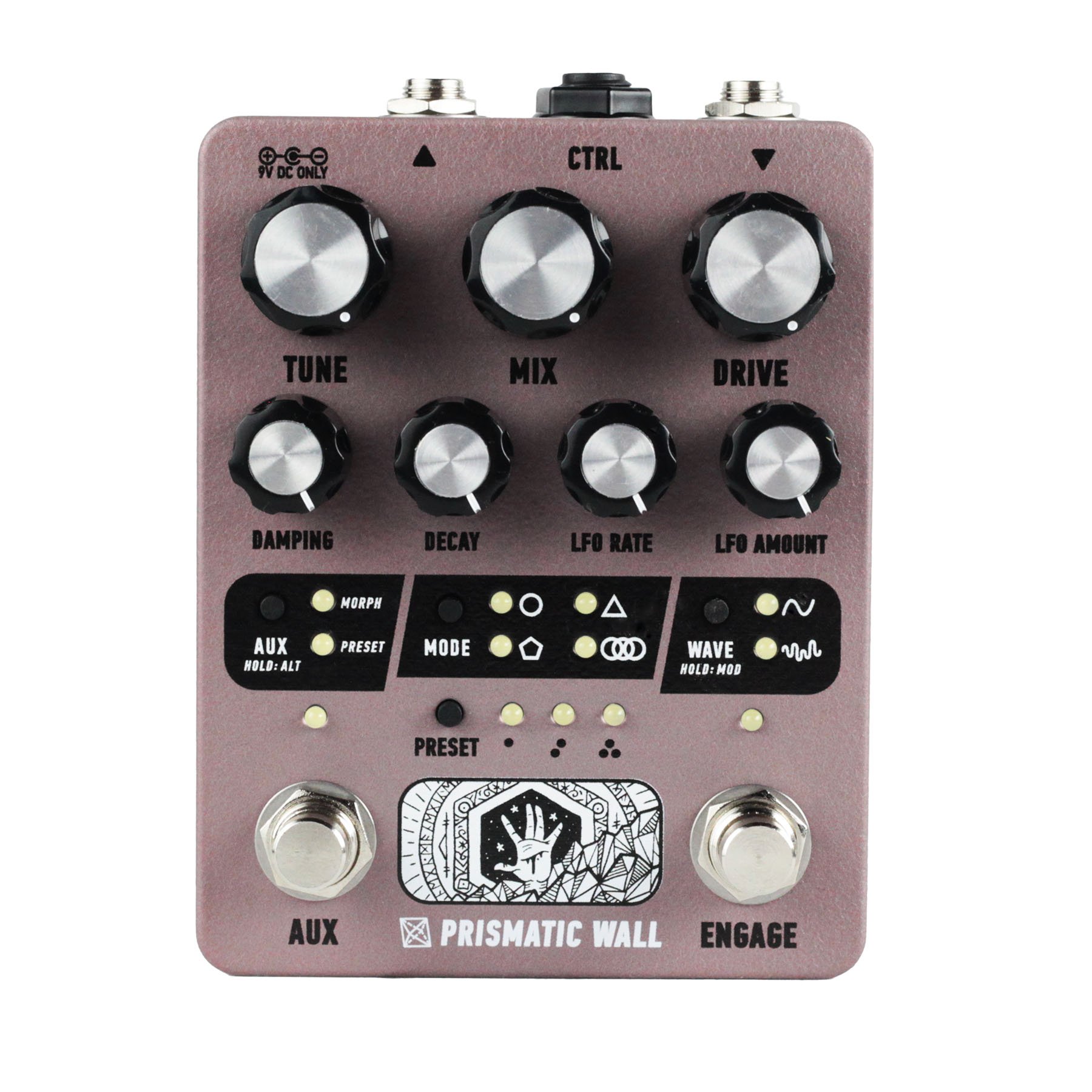

Electronic Audio Experiments Prismatic Wall - Sympathetic String Resonator


Please read carefully: these are "for the time being" Limited to one per customer.

*If you purchase more than one, your entire transaction will be refunded minus any credit card fees.

Prismatic Wall is a sympathetic resonator designed to transmute incoming sounds into the vibrations of an illusory bank of tuned strings. Part reverb and part synthesizer, its metallic yet warm timbres span from the subtle harmonic aura of a third bridge to the rich chromatic suspensions of a grand piano. The simulated vibrations form a sustaining spectral extension of your instrument that retains a tangible physicality despite its surrealist underpinnings. The resonances are reactive in nature: playing in tune excites specific pitches, while percussive attacks excite all the strings in tandem.

Prismatic Wall utilizes a physical string model formed by tuned delay lines. Tuning is achieved by varying the sample rate of the system, manipulating the physical model in decidedly non-physical ways. The Mode selector determines the interval spacing between strings, with each configuration carefully selected to maintain a sense of harmonic ambiguity. Damping and Decay change the brightness and sustain of the strings, ranging from short plucks to infinite drones.

The hardware combines primitive DSP with analog saturation and filtering for a sonic character untethered from a particular era. A fully digital user interface enables all parameters to be controlled via MIDI, saved as presets, and even modulated by the onboard LFO. In addition, the Morphing function enables controllable transitions between two distinct settings via the Aux footswitch or an expression/CV source.

Prismatic Wall is a distinct instrument in its own right, a device that refracts musical intent into multifaceted harmonic colors. Will you traverse its intricate layers?


•  Analog/digital hybrid signal processing (24 bit, variable sample rate) paired with analog filtering and emphasis, for low noise with a colorful character

• High headroom analog dry path and mixer

• Comprehensive digital control of every function using a 32-bit processor system that seamlessly integrates with the analog signal path.

• Performance-friendly expression morphing functionality with intelligent momentary/latching behavior and adjustable rise/fall times

• Full MIDI implementation (CCs and presets) for all parameters, analog and digital

• 16 preset slots: 3 via the front panel, the rest via MIDI

• CTRL jack for MIDI, expression, and CV input

• Multi-mode, assignable LFO with periodic and random waveforms

• Updatable firmware via MIDI Sysex messages

Bypass switching: Electronic bypass with buffered or Trails modes.

Input impedance @ 1kHz: 1MΩ

Output impedance @ 1kHz: 1kΩ

Power: 9VDC, 2.1mm center negative barrel. Current draw is 120mA max.

We recommend a regulated, isolated power supply rated for 200mA minimum to accommodate startup surges. The DC input is protected against reverse polarity and over-voltage up to 24V. EAE pedals do not accept batteries.

All Electronic Audio Experiments pedals come with a warranty tied to the original owner.
