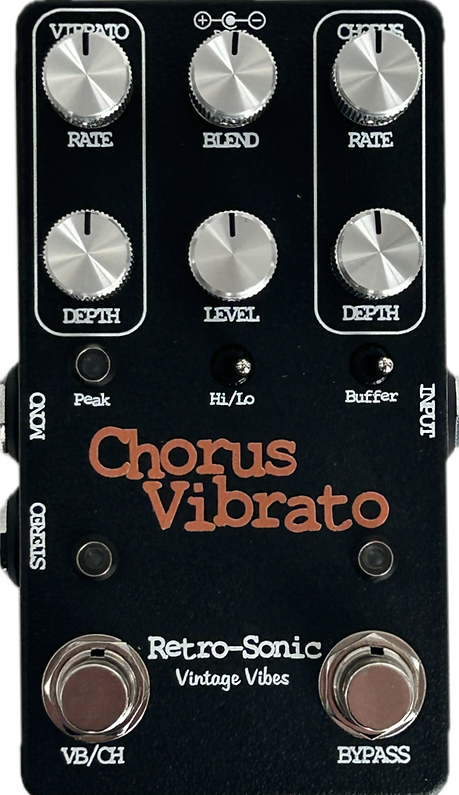

Offering Distinctive lush chorus, amazing vibrato, the RetroSonic Chorus Ensemble is the only true reproduction of the 1976 CE-1 using the original analog BBD.
Its lush, focused tone is the standard by which all other chorus effects are measured. The Chorus Ensemble is capable of a wide range of sounds from analog chorusing to pulsating vibrato, having the unique Vibrato feature that was incorporated on the original which simulates a Leslie rotating speaker. The chorus and vibrato functions are selectable through a footswitch control, allowing desired presets to be maintained by separate control. The Mono and Stereo outputs allow for a two amp setup for an amazing chorus experience The unit features high-grade components, true bypass, and now powered by 9VDC, (thanks to a custom power chip) there’s no need for a special adapter, just plug into your existing rig and enjoy!
Based on customer demand, the improved Chorus pedal now has stereo outputs and operates from standard 9VDC power supplies. The additional stereo output provides users the option of a two-amp setup. This brings a heightened dimension to the existing thick sound of the Chorus effect pedal, which has already developed a loyal following throughout North America and Europe.
•Chorus and vibrato effects selectable by footswitch control
•Mono and Stereo Outputs
•Overall Level control to adjust perfect unity gain
•Heavy duty foot switch for True By-Pass switching
•On/Off LED to check effect status.
•Speed indicator LED for Chorus/vibrato setting
•Powered by 9VDC adapter (not-included)
•Uses MN3002 BBD as original CE-1
•Noise Killer circuitry to eliminate noise generated in the BBD.
Level: Controls the over all volume of the effect. Rotate clockwise to increase output volume.
Chorus Rate: Adjusts the speed of the Chorus when in Chorus mode
Chorus Depth: This controls the intensity or amount of chorus applied to the incoming signal. (Thicker sound as you rotate clockwise).
Vibrato Rate: Adjusts the speed of the vibrato when in vibrato mode
Vibrato Depth: Adjusts the depth of the vibrato when in vibrato mode
Normal/Effect Switch: Stepping on the switch turns the effect on and off
Chorus/Vibrato:This switches between the chorus and vibrato effects.
Normal/Effect LED: The LED lights on when the effect is on and lights off when the effect is bypassed.
Chorus/Vibrato LED: Just like the original, this LED will flash in accordance to the speed setting of the active chorus or Vibrato effect.
Input: Input jack to connect the output of the guitar or other effect pedal.
Mono:Output jack to connect to input of amplifier (wet only when in stereo mode).
Stereo: Output jack to connect to the input of a second amplifier for stereo use (dry signal out)
9VDC: Jack to connect 9VDC center negative pin power.
PLEASE NOTE!!!! This unit will operate with a 9VDC REGULATED supply only. Use of other voltage adapters will result in damage to the unit. The maximum voltage is 9.9VDC
