Disaster Area DPC-5 Gen3 MIDI Pedalboard Controller & Loop Switcher

$399.99

The DPC-5 was Disaster Area's first foray into the loop-switching field way back in 2012.  They discontinued it in early 2016 when some of the parts required to build them became too expensive.  They’ve been hard at work bringing the DMC Gen3 series to life, but they never forgot about the DPC-5!

What does it do? The DPC-5 is a compact MIDI controller and loop switcher.  It’s designed to control a mix of MIDI and non-MIDI pedals in your rig, allowing you to craft presets that you can engage instantly when you need them.  A single tap on your DPC-5 can turn up to five non-MIDI pedals on or off, send tap tempo to a delay or other device, change the channel on your amplifier, and switch programs on up to four MIDI devices.  That’s a lot of power in a small footprint!

—  What’s New in  Gen3  —

More MIDI Control – Control up to four MIDI devices plus any combination of Disaster Area pedalboard switching systems.  Connect a DPC-8EZ as a MIDI slave for a 13-loop controller!

Preset Naming Capability – Each user bank and preset may be named.  This allows you to name a bank with a song title, and each preset with a section name (verse, chorus, solo, etc.)

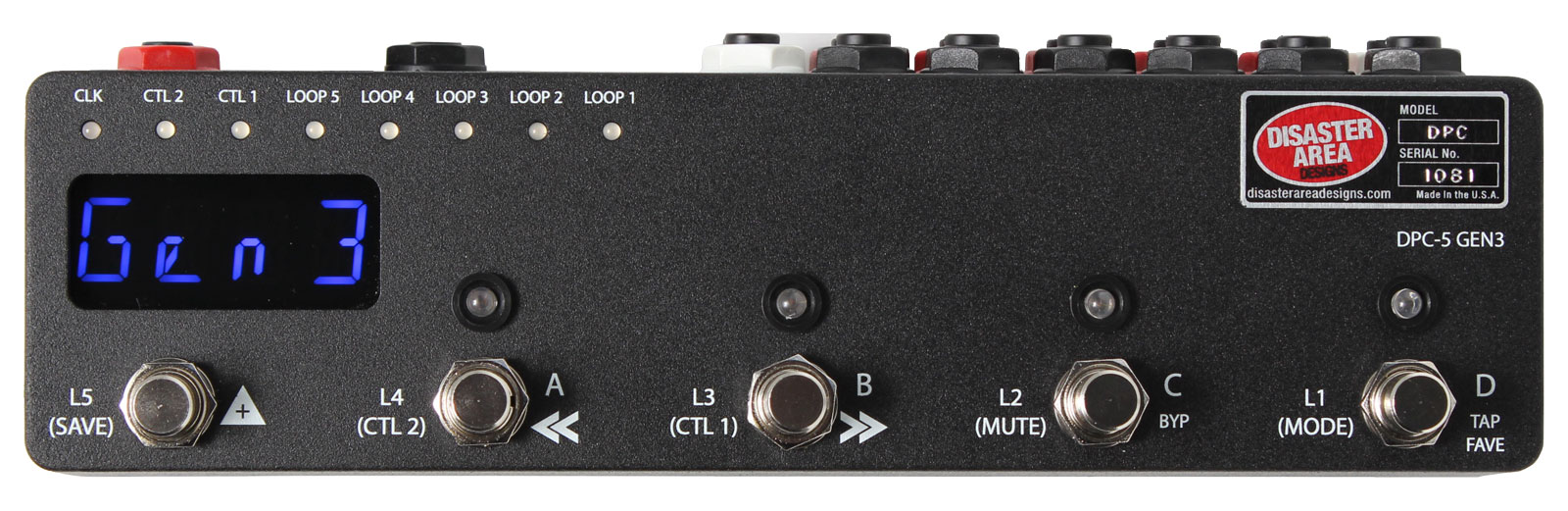

Improved LED Indication and Display – The original DPC-5 had LEDs for each preset plus a multi-function cluster of LEDs to indicate various functions.  They’ve changed those LEDs to indicate the status of each loop, the control outputs, and the buffer / mute status.  They’ve also added their trademark blue LED display, with full alphanumeric capabilities!  Both display and LEDs may be dimmed or brightened in the setup menu to suit indoor or outdoor venues.

Silent Loop Switching – They’ve changed over the older mechanical relay bypass on the original DPC-5 to the quiet and reliable solid-state relay system from the popular DPC-8EZ.  The DPC-5 now uses less power and switches with even less noise than before.  They’ve added the user-selectable Automatic Noise Reduction from the 8EZ as well, allowing you to mute the controller briefly during switching to silence troublesome pedals.

Improved Audio Path and Buffers – They now run the audio path on its own power supply to improve headroom and reduce noise.

Built-in SMARTClock – The DPC-5 Gen3 adds in support for sending MIDI Clock or tap tempo to your connected devices, without any additional hardware.  The MultiJack connector can operate as an expression pedal inputs, tap tempo footswitch inputs, MIDI outputs, or isolated tap tempo outputs.  The DPC-5 Gen3 can send either a global tempo / BPM for all presets, or a new tempo / BPM for each preset.

Built-in SMARTSwitch – The DPC-5 has an isolated TRS (tip-ring-sleeve) jack that may be used for amplifier channel, tremolo, reverb, or other switching functions.

MultiJack – They’ve brought the MultiJack over from the SMARTClock, but They’ve taught it some new tricks!  The MultiJack can function as an expression pedal input, tap tempo footswitch input, or additional MIDI output by connecting the Disaster Area TRS to MIDI Adaptor Cable.  Want more?  Flip the DIP switches inside the pedal and the MultiJack can act as an isolated tap tempo output to your non-MIDI gear.  Any of the pedals listed over on the TNT or SMARTClock pages can be controlled by the MultiJack. The MultiJack also supports selectable tap tempo subdivisions, so you can tap in quarter notes and have your delay set to dotted eighths.

MIDI Input and Output – the 5-pin MIDI jack on theDPC-5 operates as a MIDI output, of course, but if you connect the Disaster Area MIDI Y-Cable, you can also send MIDI in to the DPC-5 Gen3.  Want to connect your old DMC Gen2 to your brand new Gen3?  No problem!  How about sending MIDI clock into your chain from a drum machine?  Sure, that’ll work.

Easy Firmware Update – no more driver installation, app downloads, or weird Windows errors!  Simply hold the bank up / save button and plug in your DPC, and it shows up on your desktop as a flash drive.  Drag and drop the new firmware over and you’re all set!  (Mac folks will have to type three keystrokes, but you can handle that!)  And our new 32-bit processor has more than eight times the available power of the Gen2 family.  Disaster Area will be adding support for more devices and more features as you request them!

— What can the DPC-5 Gen3 do for me? —

We’re glad you asked!  If you have one MIDI device, the DPC-5 Gen3 can simplify selecting programs, send it expression or tap tempo, or even keep it locked in to a MIDI clock.  We can also control the loop recorder / looper on several popular devices such as the Strymon Timeline, Eventide H9, and Line 6 M9 / M13.   Unlike the DMC-3XL and DMC-4 Gen3, the looper mode doesn’t occupy one of the device slots, so you can still get full control even with the looper mode enabled.

As helpful as the DPC-5 Gen3 is for single device users, it really shines when used with multiple pedals.  Instead of scrolling around on each device to select a program for your next song, the DMC can send simultaneous commands to all of your pedals to select the exact patches you want with a single tap!  Using our Preset Mode, changing sounds on all of your MIDI pedals is as easy as changing the channel on your TV remote.  The DPC-5Gen3 can control up to four separate devices.

And by adding our new Clock Mode, we’ve taken pedalboard control to a new level!  You can select your tempo by BPM, or tap in a new tempo any time.  The DPC-5 Gen3 allows for a global tempo that you can tap in at any time, or preset tempos that change along with your MIDI programs.  You can even configure the MultiJack to send taps to your non-MIDI devices with tap tempo inputs.

— Features and Specs —

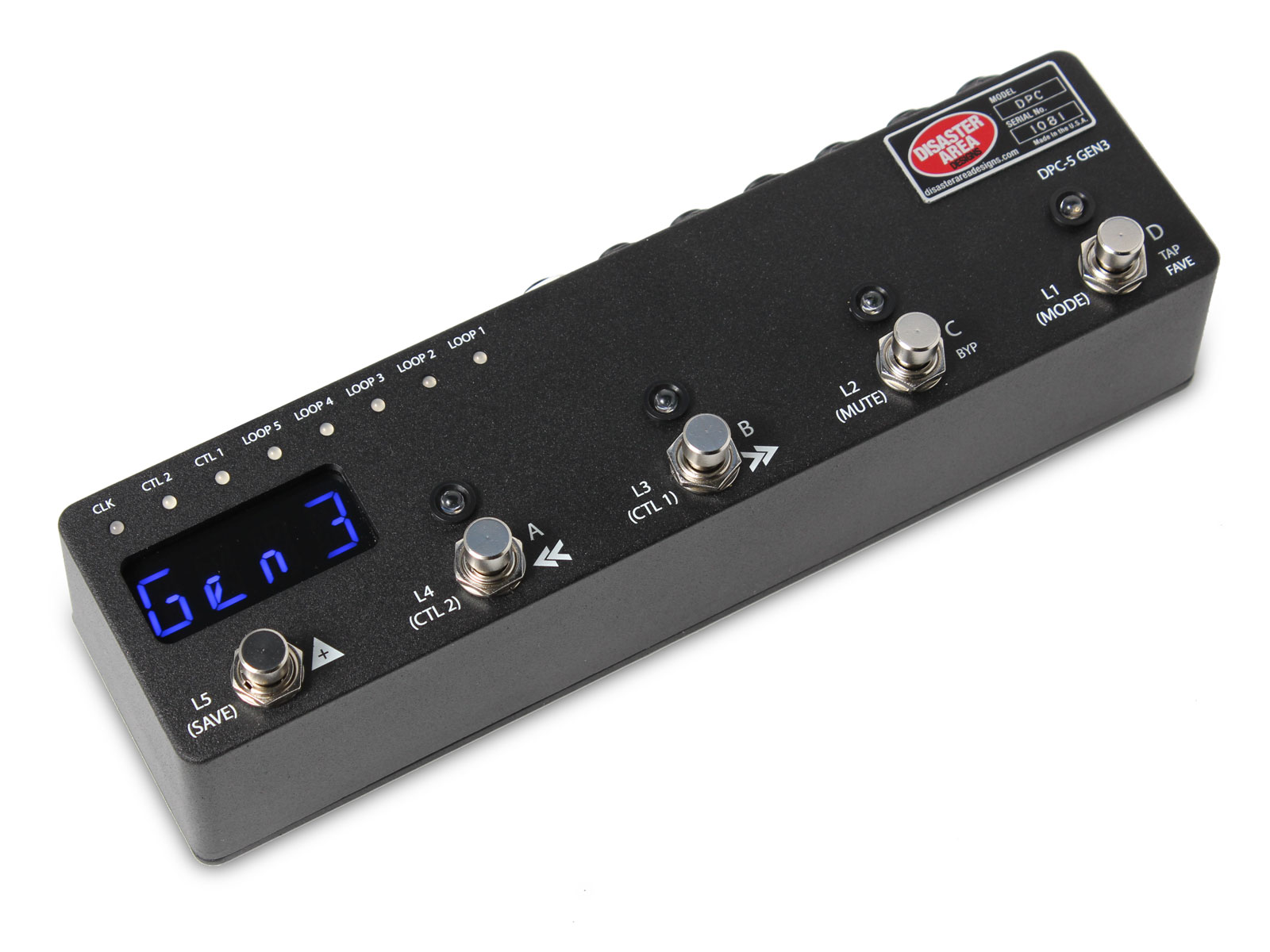

  • Sturdy cast aluminum enclosure
  • Enclosure Dimensions 10″ x 2.5″ x 2.0″
  • Soft-touch footswitches
  • Blue LED display with 10 brightness levels

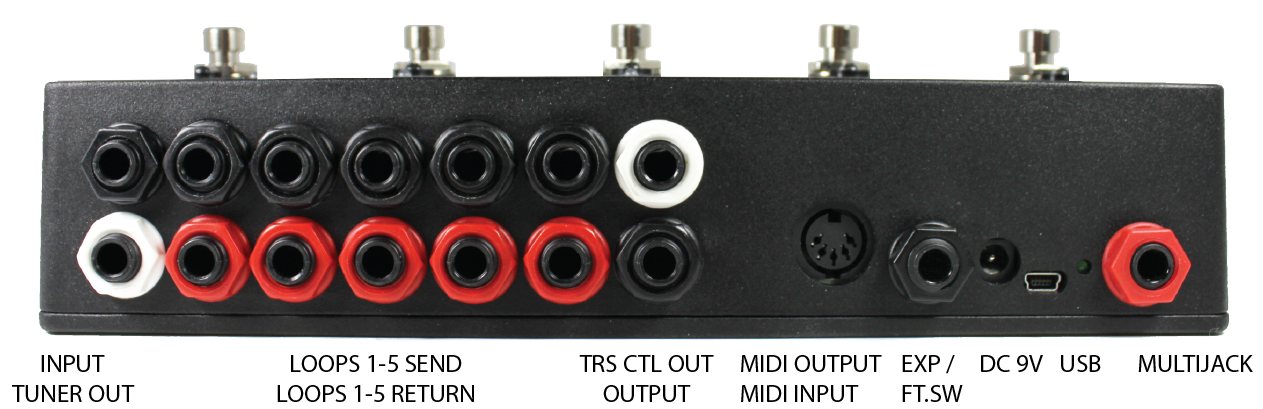

  • 5-pin MIDI port, doubles as MIDI input using the Disaster Area MIDI Y-Cable
  • 9vDC power jack, 100mA max (up to 500mA if powering a USB device as host)
  • USB port with USB-MIDI functionality or USB Host compatibility
  • Five effects loops with optional noise-cancelling mute circuitry
  • High-quality bypassable buffer allows Loop 1 to be used even for impedance-sensitive devices like vintage fuzzes
  • Isolated TRS ouputs for amplifier or remote switching
  • Always-on tuner output jack with mute capability
  • 1/4″ jack for expression pedal or tap tempo switch
