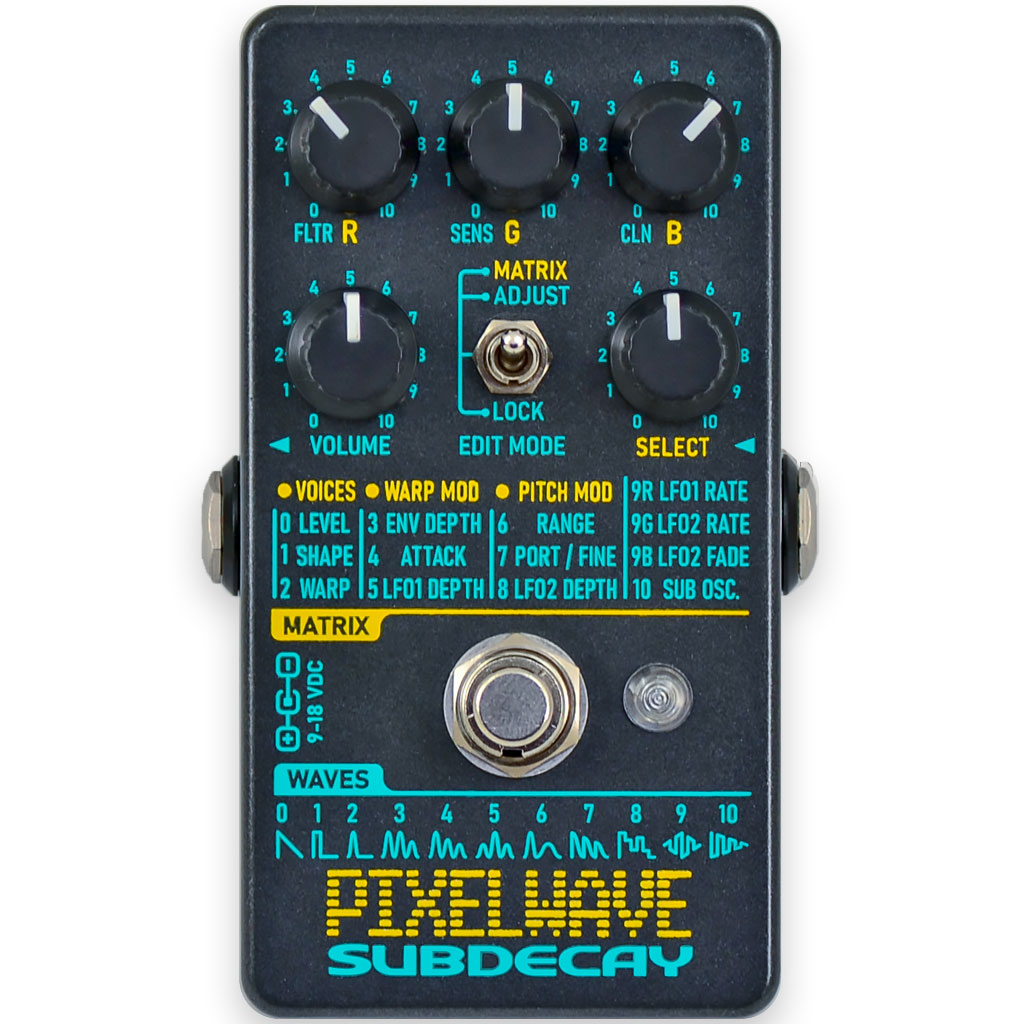

Subdecay Pixelwave Phase Distortion Synthesizer

Brands:

$199.00
  • Phase distortion guitar synth.
  • 3 Oscillators + 1 Sub-oscillator.
  • 37 programmable parameters.
  • 11 User presets

Phase Distortion Synthesizer

Take a trip back in time to the underappreciated 12bit era of synthesis. A time of experiments built for mass appeal. Finally, synthesizers were available to the everyday musician. One new idea was phase distortion synthesis.  Casio sold it as the answer to Yamaha’s FM synthesis. Ultimately, Casio discontinued the CZ phase distortion synthesizers, but these synthesizers garnered a cult following for their versatility and relative affordability.

The PixelWave covers a wide range of synthesizer sounds. From string ensembles to filter sweeps and resonant noise. Oscillators can be offset over four octaves by half-step increments and fine-tuning. Use this to create massive 80s unison leads or modern one key dance chords.

So Many Options. Where are all the controls?

The EDIT MODE switch and SELECT knob put the R G and B knobs in control individual parameters. Find these parameters listed as MATRIX on the face of the PixelWave. Parameters allow direct control of waves shapes, modulation, pitch, LFOs, and more.

Set the EDIT MODE switch to LOCK to disable the R G and B knobs. This avoids unintentional changes while using the pedal live. In LOCK mode only two parameters are available. The master volume is available and the SELECT knob chooses the preset.

RGB Pixel Matrix

Flip the EDIT switch to MATRIX for deep programming options. Then use the R G and B knobs to take control. Each knob corresponds to parameters for its oscillator (with a few exceptions noted in red in the table below.) The SELECT knob chooses the parameter from the matrix.

PixelWave Phase distortion matrix

In MATRIX mode hold down the bypass switch for two seconds to save a preset. Then choose the preset location with the SELECT knob. Finally, press the bypass switch again to save.
In ADJUST mode the R G and B knobs change to alternate functions: FILTER, SENSITIVITY, and CLEAN MIX.

Oscillators and waveshaping.

The PixelWave has three oscillators and one sub-oscillator. Chose from eleven waveforms for each oscillator. The sub-oscillator is limited to Saw, PWM, Hard Res, and Sync.

PixelWave phase distortion oscillators

Why Phase Distortion?

Phase distortion is based on sine waves. The wave distorts to achieve other timbres. These timbres include saw waves, pulse waves, resonance, and more. It’s often compared to FM synthesis, but the implementation is quite different. Some FM sounds are possible, but it will also mimic analog filter sweeps which were impossible in FM synthesis. Programming is also more intuitive and easier to understand. Phase distortion combines digital with the versatility to emulate analog sounds.  This made it an ideal candidate for a deeply programmable guitar synthesizer.
