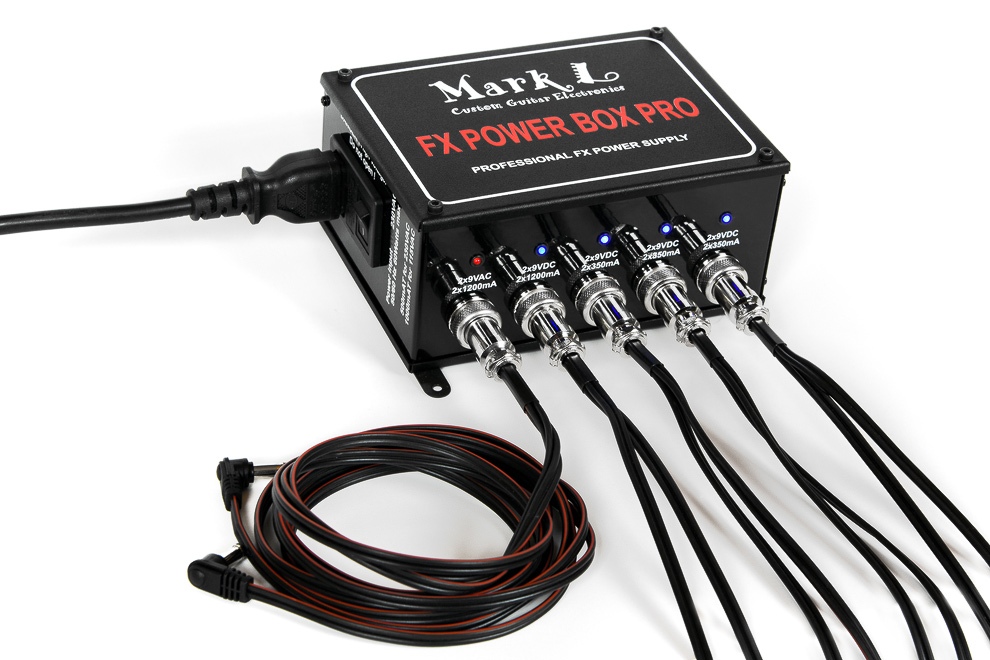

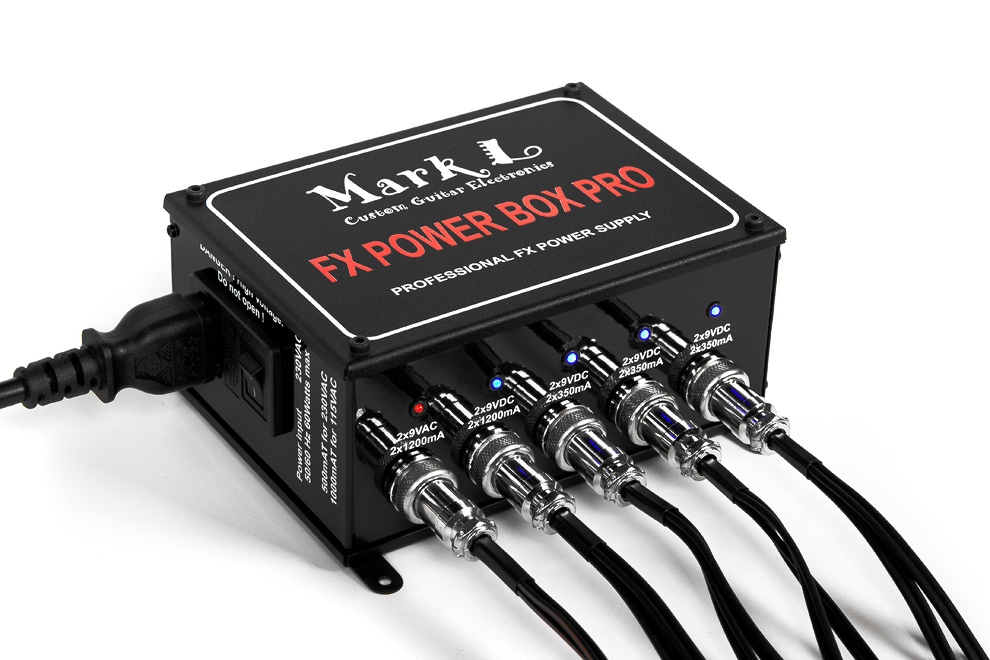

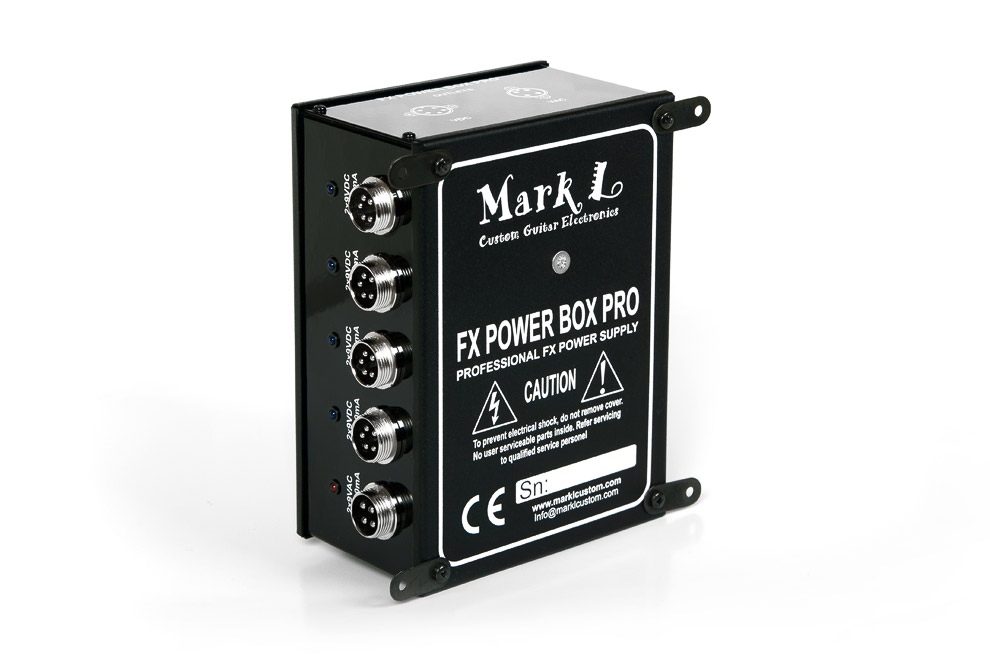

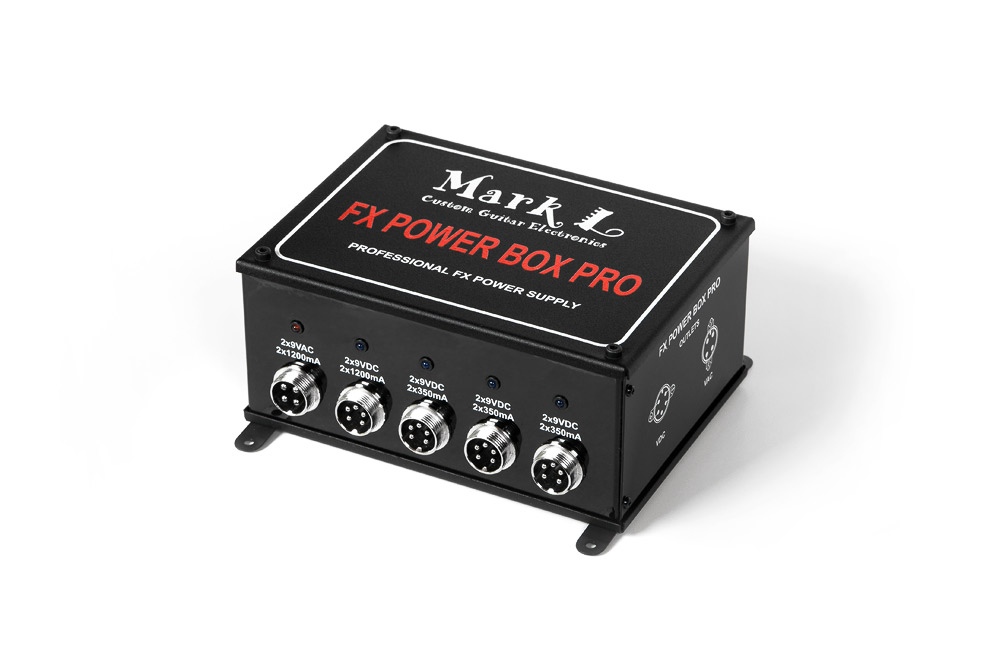

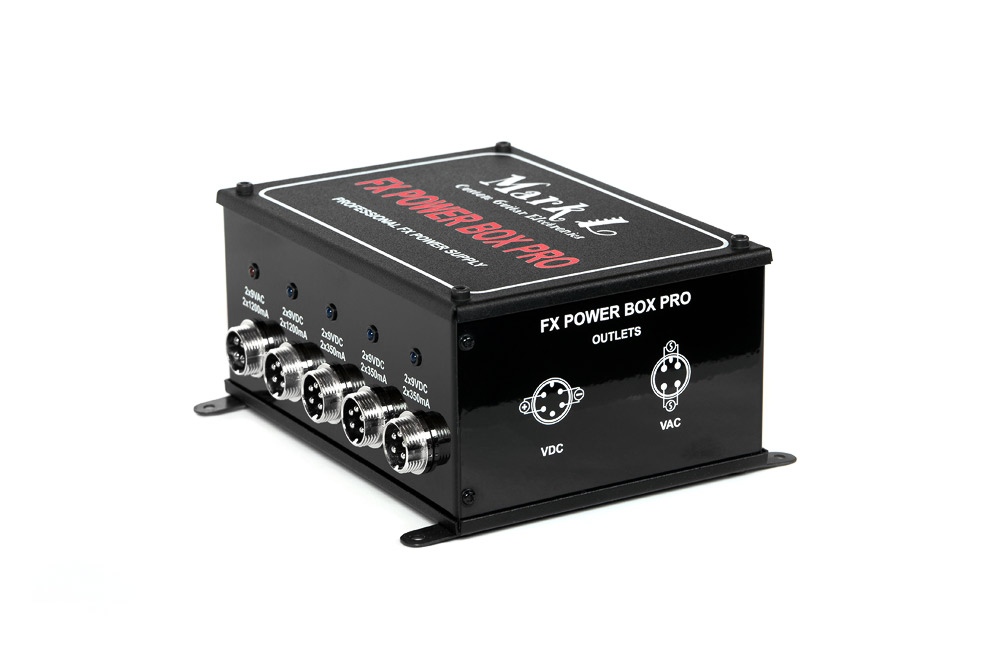

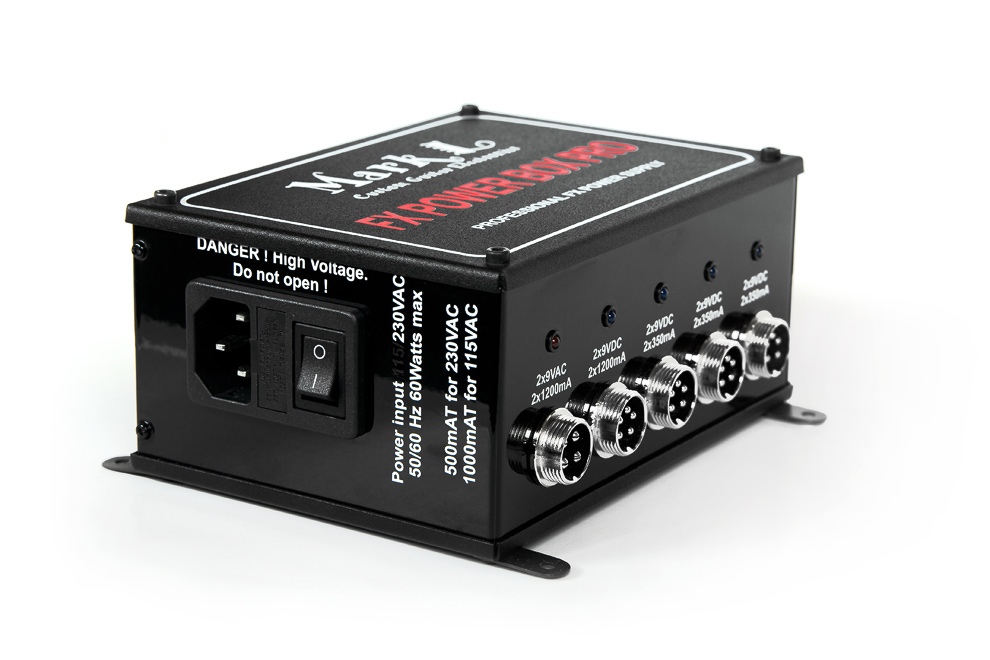

Mark L Power Box Pro

Brands:

$359.00

The Power Box Pro pedalboard power supply is designed to power 9 VDC/300mA direct current guitar effect pedals as well as effects (multieffects, sound processors) that operate on a 9VAC/1.2A.  It has a high efficiency toriodal transformer, equipped with an electromagnetic shield.  There are 10 independent sections powering a separated galvanic, immunizing from any distortion caused by a 230V/115V mains power supply.

High capacity electrolytic condensers ensure perfectly clean exit voltage while high-quality professional voltage stabilizers ensure stable operation of the power supply box.

The POWER BOX PRO is Equipped with 5 professional, metal output-housings and cables powering 9 effects operating on a 9VDC and effects operating on a 9VAC . As standard equipment, the unit comes with power supply cables with BOSS type plugs (2,1mm x 5,5mm) for direct current and 2,5 mm x 5,5 mm plugs for alternating current.

The POWER BOX PRO also includes several safety features preventing:

  • short circuits – when a short circuit occurs on the output circuit the power box kills power from all outputs,
  • thermal (working in demanding environments such as overheating while working above 4A, the power box kills 230V mains and automatically powers back up after safe operational temperatures have been reached,
  • overvoltage – the power box is equipped with topical fuses safeguarding 230V mains and a 15oV and 250V varistor.

The POWER BOX PRO housing is made from a fully zinc-plated and later powder coated steel, thanks to which the housing is magnetically shielded, while remaining highly scratch and dent resistant.

TECHNICAL SPECIFICATION:

Power In:
Operational temperature:
Height:
Width:
Length:
Weight:

Power Out:

230V/115V 50/60Hz
-15C / +50 oC
65 mm
145 mm
100 mm
2,5 kg / 5 pounds

  • 6 x 9VDC/300mA - for standard effects ( BOSS and other )
  • 2 x 9VDC/1,2A - for standard effects & processors ( BOSS, EVENTIDE and other)
  • 2 x 9VAC/1,2A - for processors, midi controllers, midi loop & other



  • Handcrafted by passionate professionals for musicians.
  • Include highest-quality components e.g. NEUTRIK, SWITCHKRAFT, HAMMOND.
  • Everything is built inside a sturdy powder coated aluminum chassis, to withstand stage wear and tear.
  • 100% analog signal line, creating a warm and rich tone.
  • TRUE BYPASS for extreme tone clarity.
  • Before shipping, each device is carefully inspected by the company’s inside personnel as well as professional musicians who take part in the construction of our devices.

Warranty: 2 years
